Education & WorkplaceBuilding Bulletin 100 (BB100)

Fire-Resistant Glass for Schools & Educational Buildings

Certified fire compartmentation screens, classroom vision panels, and corridor doors engineered to Building Bulletin 100 (BB100) and BS EN 13501-2.

Specifier Problem & Project Context: School estate managers and education architects must comply with stringent Building Bulletin 100 fire rules while ensuring heavy glass corridor screens withstand constant pupil impact collisions (BS EN 12600 Class 1B1).

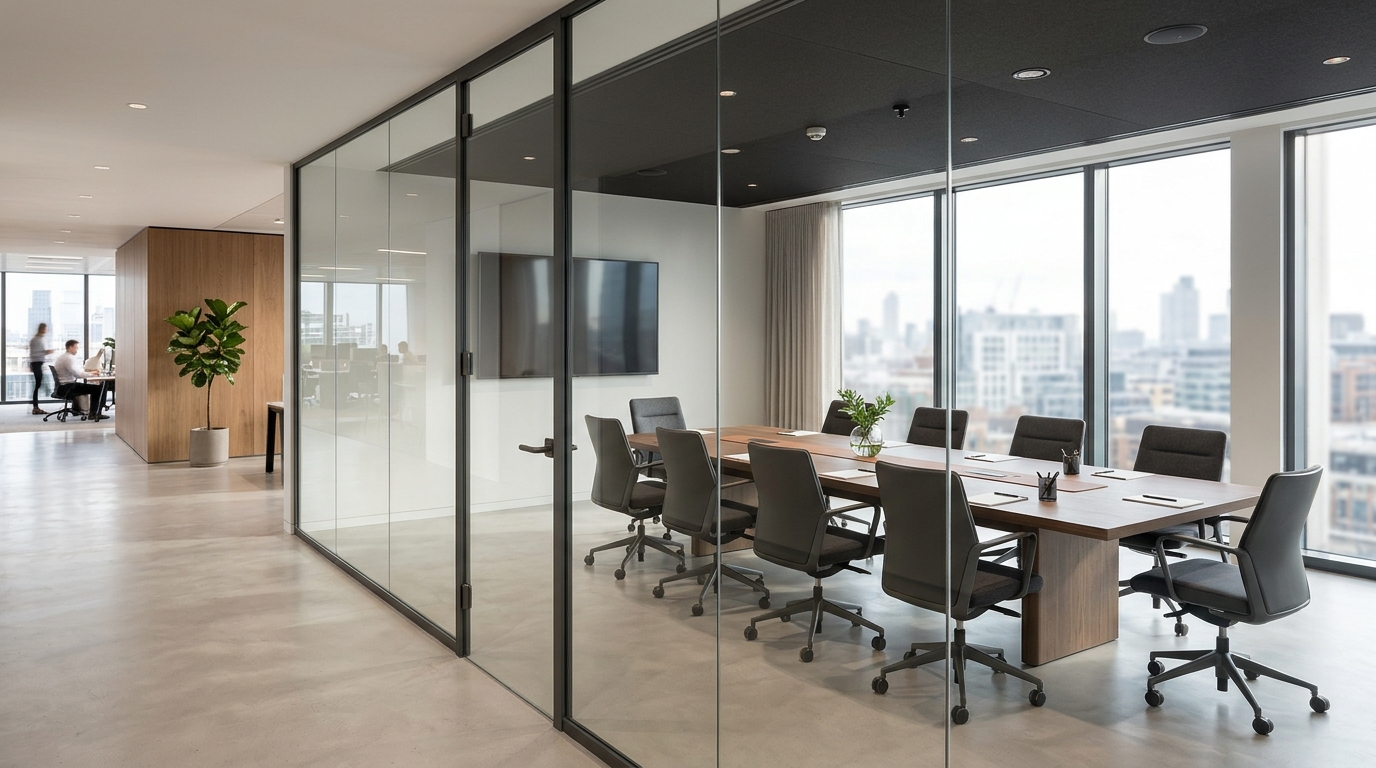

Architectural installation example of Fire-Resistant Glass for Schools & Educational Buildings

Architectural Installation Context — Fire-Resistant Glass for Schools & Educational Buildings

Precision Specification

Commercial Frameless Glazed System Section

Full Height Partition & Perimeter Detail

Accessible Static View

Schematic exploded horizontal cross-section showing sequential structural placement.

Structural Soffit / Deflection Head(Cast Concrete & Steel Subframe)

150mmAbsorbs ±15mm floor slab live deflection

Top Acoustic Glazing Channel(Two-Piece Aluminium Pocket)

45mmAcoustic EPDM acoustic gasket seals

Acoustic / Safety Glazing Pane(12.8mm Acoustic Laminated)

12.8mmCentral sound isolation & impact barrier

Structural Base Shoe Channel(Heavy Extruded Aluminium Shoe)

65mmContinuous mechanical floor fixing to BS 6180

Structural Floor Slab & Screed(Reinforced Concrete Substrate)

200mmPrimary dead-load and moment anchor point

BS EN 12150 / BS EN 14449 Architectural ReferenceIllustrative diagram — project structural verification required

Evaluation

Candidate Glass Constructions & Practical Trade-Offs

Option 0114mm – 18mm Multi-Ply Intumescent

EI30 Intumescent Fire-Resistant Safety Glass

Recommended When:Classroom corridor dividing walls, library partitions, and secondary circulation routes.

Trade-Offs & Limits:Provides full 30-minute integrity and thermal insulation (surface temperature < 140°C rise) preventing clothes from igniting; dual-certified to Class 1B1 impact safety.

Option 0223mm – 28mm Multi-Ply Intumescent in Certified Steel/Hardwood Frame

EI60 Heavy-Duty Intumescent Glazed Assembly

Recommended When:Protected primary vertical escape stairwells, school atriums, and sports hall fire separation screens.

Trade-Offs & Limits:60 minutes full fire containment; substantially heavier dead-weight (~60 kg/m²) requiring structural frame anchors and heavy-duty pivot hinges.

Option 037mm – 11mm Modified Toughened / Gel Fire Glass

E30 / EW30 High-Level Transom Glazing

Recommended When:High-level clerestory corridor fanlights above 2200mm where thermal radiation does not endanger escaping pupils.

Trade-Offs & Limits:Lower cost per m²; strictly limited to locations where full insulation (EI) is not mandated by the school fire risk assessment.

Architectural Design Checklist

Verify adherence to Building Bulletin 100 (BB100: Design for fire safety in schools) and Approved Document B.

Mandate dual certification: All glass below 1500mm in school doors and below 800mm in corridor screens MUST achieve both fire rating (EI) and BS EN 12600 Class 1B1 impact safety.

Verify permanent indelible fire safety kitemarks are visible after framing beads are fitted (essential for Building Control / Fire Authority sign-off).

Specify edge tape protection: Intumescent fire interlayers are sensitive to moisture and UV degradation; verify sealed perimeter tapes are intact prior to glazing.

Ensure door vision panels comply with Approved Document M: minimum glazed zone between 500mm and 1500mm from floor level to ensure small children and wheelchair users are visible.

Statutory UK Building Regulations

Building Bulletin 100 (BB100)

Mandatory UK Government standard governing fire safety design, compartmentation, and escape routes in school buildings.

BS EN 13501-2 & BS 476-22

European and British fire classification: Integrity (E), Radiation Control (EW), and Thermal Insulation (EI).

BS EN 12600 Class 1B1

Highest level of impact safety preventing bodily puncture or laceration in active school circulation zones.

Installation & Site Access Logistics

Crane & Vacuum Lifters:Standard manual suction handling within HSE guidelines (<20kg per person).

Substrate Fixings:Timber and steel fire frames must be secured with certified fire-rated fixings and intumescent mastic backing matching the Warringtonfire/Certifire test scope.

Site Tolerances:Glass pane expansion gap (typically 4–5mm per perimeter side) must strictly follow the fire test field of application report.

Procurement Advice: Supply-Only vs Turnkey

Fire safety glazing in schools must be installed by certified fire door and screen installers (FIRAS or BM TRADA Q-Mark accredited) who provide formal system conformity certificates.

Reviewed by: Certified Educational Fire Safety Glazing Consultant, BuyGlass Editorial Panel

Updated: 2026-10-30
