Specifier Problem & Project Context: Lift engineers, commercial developers, and hotel architects must reconcile dynamic kinetic car vibration, pendulum shock resistance, and strict fire separation between floors where lift shafts penetrate compartment boundaries.

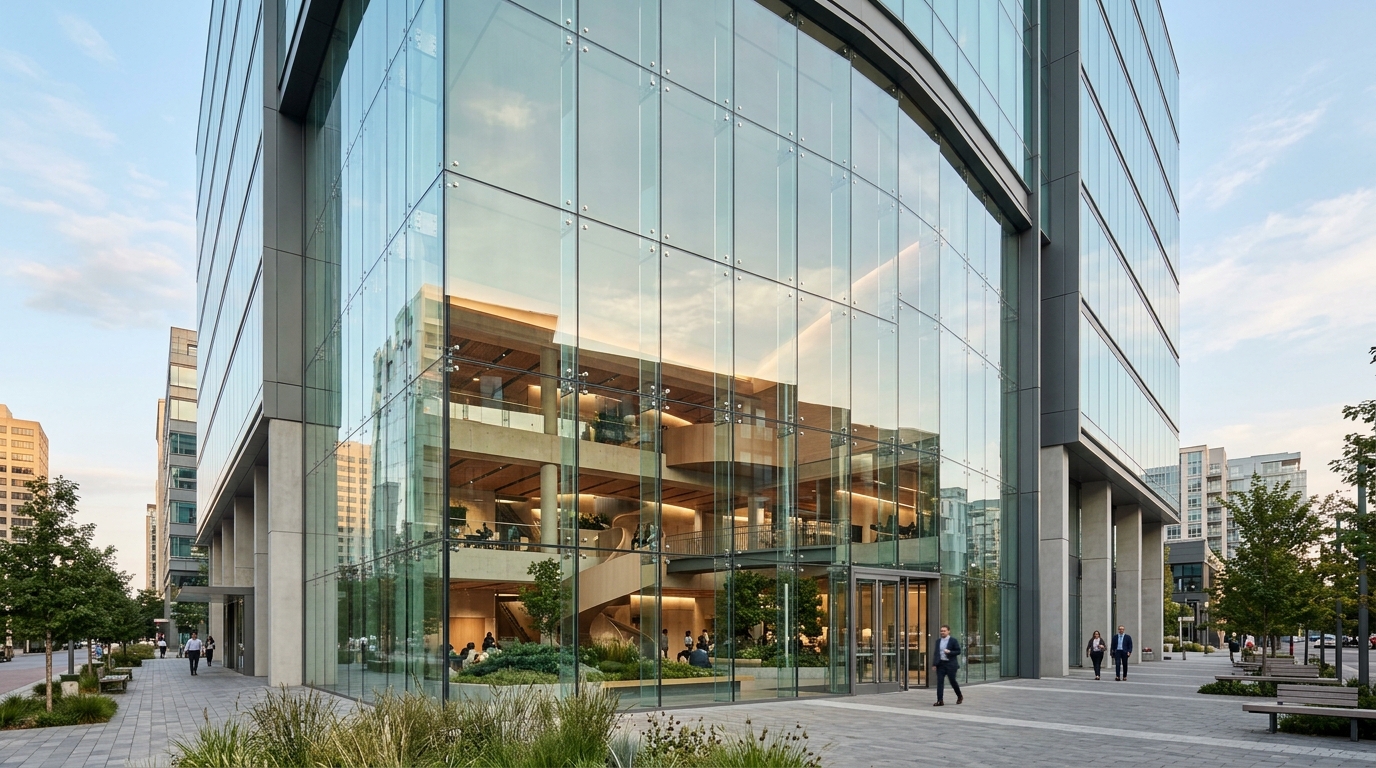

Architectural installation example of Commercial Lifts & Panoramic Elevator Enclosures

Architectural Installation Context — Commercial Lifts & Panoramic Elevator Enclosures

Precision Specification

Commercial Frameless Glazed System Section

Full Height Partition & Perimeter Detail

Accessible Static View

Schematic exploded horizontal cross-section showing sequential structural placement.

Structural Soffit / Deflection Head(Cast Concrete & Steel Subframe)

150mmAbsorbs ±15mm floor slab live deflection

Top Acoustic Glazing Channel(Two-Piece Aluminium Pocket)

45mmAcoustic EPDM acoustic gasket seals

Acoustic / Safety Glazing Pane(12.8mm Acoustic Laminated)

12.8mmCentral sound isolation & impact barrier

Structural Base Shoe Channel(Heavy Extruded Aluminium Shoe)

65mmContinuous mechanical floor fixing to BS 6180

Structural Floor Slab & Screed(Reinforced Concrete Substrate)

200mmPrimary dead-load and moment anchor point

BS EN 12150 / BS EN 14449 Architectural ReferenceIllustrative diagram — project structural verification required

Evaluation

Candidate Glass Constructions & Practical Trade-Offs

Option 0110.8mm – 13.52mm (e.g. 5+0.76+5 or 6+1.52+6)

Laminated Toughened Glass for Lift Car Enclosures

Recommended When:Panoramic moving elevator car walls, observation cabins, and internal car ceiling panels.

Trade-Offs & Limits:High optical transparency and zero fragment spall during mechanical impact; requires strict edge clearance to prevent car frame racking stress.

Option 0228mm – 36mm High-Performance Acoustic & Solar IGU

Double Glazed Unitised Laminated Enclosure for External Shafts

Recommended When:External panoramic lift towers on building exteriors subject to wind pressure and solar heat buildup.

Trade-Offs & Limits:Prevents lift car greenhouse overheating; requires integrated solar control coating and structural silicone joints resistant to atmospheric wind pumping.

Option 0316mm – 25mm EI30 or EI60 Intumescent Assembly

Certified Fire-Resistant Glazing for Lift Landing Doors

Recommended When:Lift lobby landing doors and fire shaft compartment screens.

Trade-Offs & Limits:Restricts fire and toxic smoke spread between building levels; must be tested and certified strictly to BS EN 81-58 within specific lift landing door frames.

Architectural Design Checklist

Verify compliance with BS EN 81-20 Section 5.2.1.4.1: Glass lift walls must withstand 300N point load applied horizontally over 5cm² area without permanent deflection > 15mm.

Verify BS EN 81-20 Section 5.2.1.4.2 pendulum impact test: Lift car walls must withstand 50kg dual-tire pendulum shock from 700mm drop height without penetration or detachment.

Mandate laminated glass only: Monolithic toughened glass is strictly prohibited in lift cars below 2.5m elevation per BS EN 81-20.

Ensure lift landing door glass satisfies BS EN 81-58 fire resistance test standards for integrity (E) and insulation (EI).

Account for elevator car dynamic acceleration/deceleration forces and piston/cable air blast in sealed shafts.

Specify anti-pinch visual manifestation indicators and flush countersunk fixings to eliminate passenger snagging points.

Statutory UK Building Regulations

BS EN 81-20:2020 & BS EN 81-50

Safety rules for lifts: mandatory mechanical 300N point load test and 50kg pendulum shock criteria for glass car walls.

BS EN 81-58

Fire resistance tests for lift landing doors, ensuring compartment separation across multi-storey shafts.

BS EN 12600 Class 1B1

Highest laminated containment classification preventing pane penetration under 50kg pendulum drop.

Installation & Site Access Logistics

Crane & Vacuum Lifters:Mandatory for high-level, thick multi-ply, or oversized panels.

Substrate Fixings:Lift shaft steelwork must be engineered with minimal torsional deflection under moving counterweight and car live loads.

Site Tolerances:Shaft plumb line tolerances must be maintained within ±3mm over full building travel height; laser alignment mandatory.

Procurement Advice: Supply-Only vs Turnkey

Cut-to-size laminated panels can be ordered to exact CNC hole drawings for lift OEMs, but on-site mechanical installation must be performed by certified lift contractors (LEIA accredited).

Reviewed by: Senior Vertical Transport Glazing Consultant, BuyGlass Editorial Panel

Updated: 2026-10-30
